Additional information
| Specifications | 70×100; 80X100 |
|---|---|
| Material | Titanium Magnesium Alloy |
| Thickness | S Bend Thickness 1.5cm |
| Ladder Weight | 65kg |
| Loading Capacity | 500kg |
| Suitable Height | Below 3.5 |
| Colors | All white, All black, Black and white, Blue and white, Orange and white |
Technical Specifications
Product Description:
Smart Ceiling Access Solution – Compact, Adjustable, and Built for Reliable Everyday Use

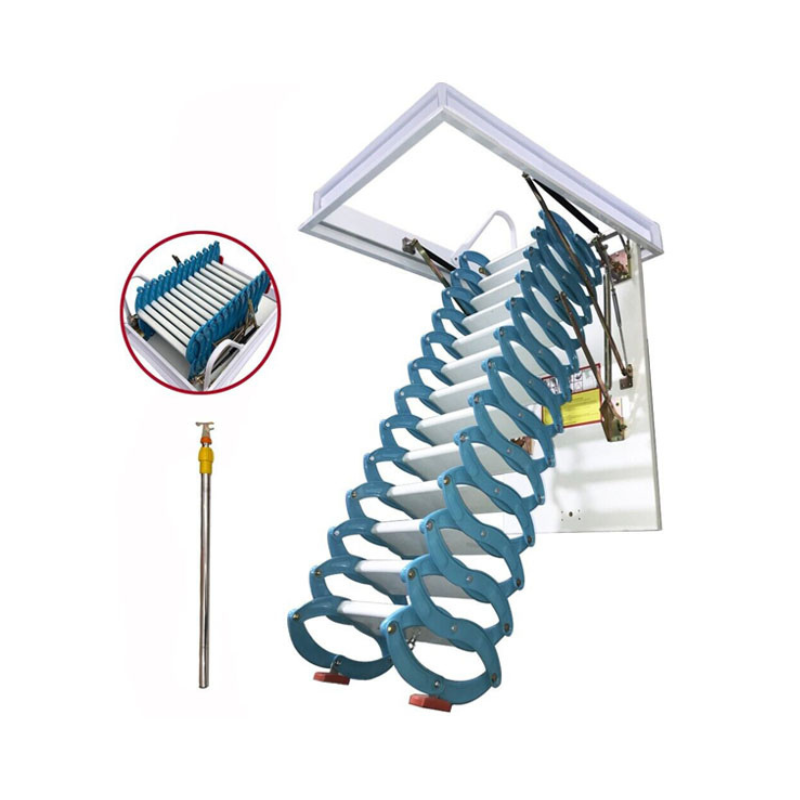

Gain safe and effortless access to ceiling spaces and elevated areas with the TC-THL-8001 Telescopic / Retractable Ladder, a modern ladder solution designed to maximize space efficiency without compromising strength or user safety. Its telescopic folding mechanism allows the ladder to retract neatly into compact storage space when not in use, keeping interiors clean, organized, and visually uncluttered.
Engineered for versatility, the TC-THL-8001 adapts easily to different ceiling heights and access requirements, making it suitable for residential homes, commercial facilities, service rooms, and maintenance environments. Whether accessing attic storage, ceiling inspection panels, or elevated utility spaces, the ladder delivers stable footing and dependable load performance for routine use.
Beyond functionality, the ladder features an ergonomic climbing design with comfortable step spacing, anti-slip surfaces, and smooth extension control for safer operation. Its durable construction and weather-resistant finish support long-term reliability even in demanding environments, while the lightweight structure ensures easy handling and effortless deployment.
Combining compact storage, flexible adjustability, and user-focused safety, the TC-THL-8001 offers a practical and professional ceiling access solution that integrates seamlessly into modern building spaces.
Product Parameters:

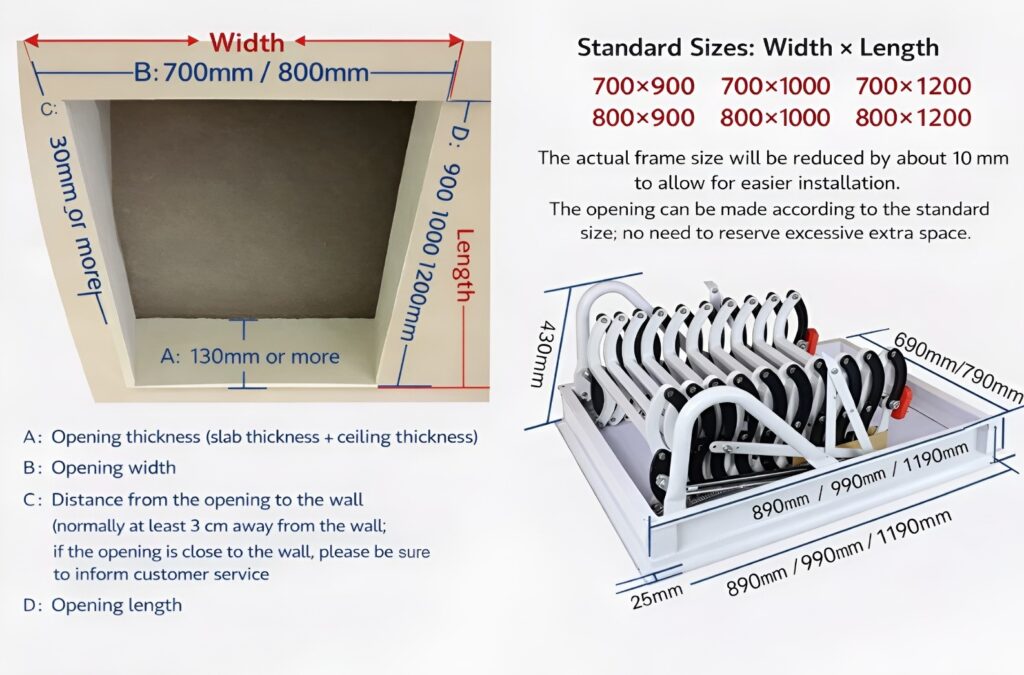

| Standard Opening Size (Width × Length) | 700 × 900 mm, 700 × 1000 mm, 700 × 1200 mm 800 × 900 mm, 800 × 1000 mm, 800 × 1200 mm |
|---|---|
| Opening Width (B) | 700 mm / 800 mm |
| Opening Length (D) | 900 mm / 1000 mm / 1200 mm |
| Opening Thickness (A) | Minimum 130 mm (slab thickness + ceiling thickness) |
| Wall Clearance Requirement (C) | Minimum 30 mm from wall (recommended ≥ 50 mm if near wall corner) |
| Actual Frame Tolerance | Frame size reduced by approximately 10 mm for installation clearance |

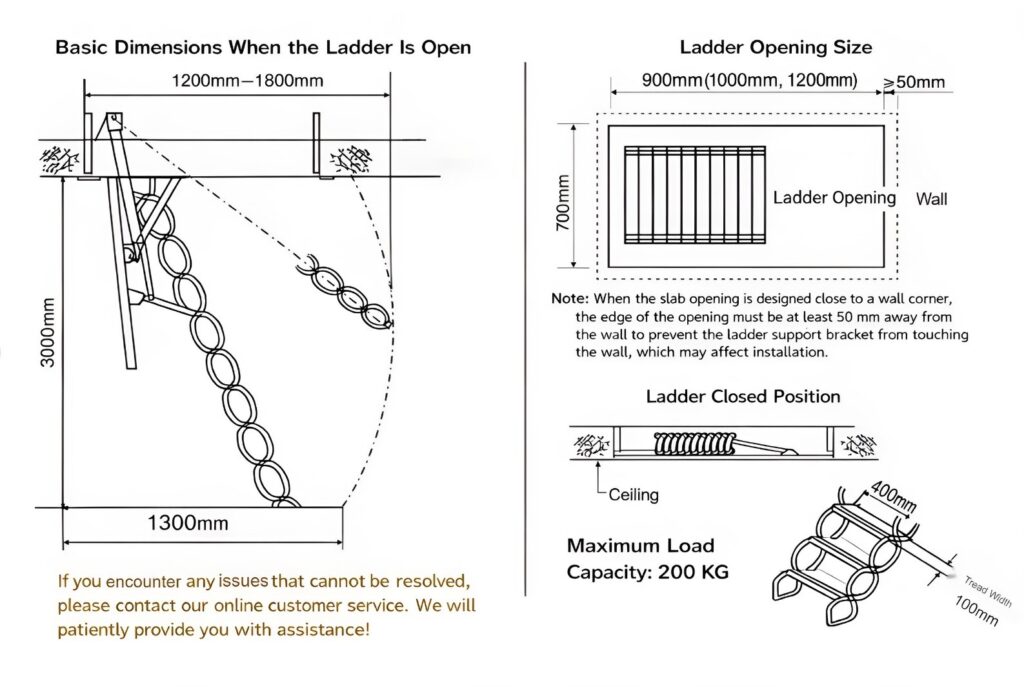

| Ladder Opening Clearance | Required horizontal clearance: 1200 – 1800 mm when fully opened |
| Recommended Ceiling Height | Up to approximately 3000 mm |
| Footprint Length When Open | Approximately 1300 mm |
| Frame Outer Size | Width: 690 mm / 790 mm Length: 890 mm / 990 mm / 1190 mm |
| Frame Thickness | 25 mm |
| Step Width | 400 mm |
| Tread Width | 100 mm |
| Maximum Load Capacity | 200 kg |
